3D Printing Services
3D printing services: SLA, SLS and metal SLM.
3D printing services from industrial SLA and SLS nylon to engineering FDM up to PEEK and metal SLM in 304 stainless steel — printed parts verified, with an inspection report per order.
One-stop prototype & low-volume build · Inspection report with every part · Quote in 24 h
Printing is a process choice, not a fallback. Arterki runs industrial stereolithography on large-vat machines, SLS nylon on an industrial powder station, a 40-printer desktop FDM fleet with a high-temperature line for PEEK and PEI, and metal SLM in 304 stainless steel — so the process is matched to the part, not the other way round.
Match the process to the job
Appearance models and master patterns come off the SLA floor in 4–6 resin grades. Functional nylon parts that have to survive snap-fits, heat and live assemblies print in SLS PA12, PA11 or TPU. Metal parts start on SLM in 304 stainless steel; 316L, titanium and 17-4PH are on our roadmap — in planning, inquiry only. MJF is not offered, and we will tell you when SLS is the better call anyway.
Printed does not mean unverified
Every order ships with an inspection report. Dimensional checks run on KEYENCE IM vision metrology and a metrology-grade SHINING 3D FreeScan Combo+ scanner, so post-cure shrinkage and distortion are measured, not assumed. Where a print cannot hold a callout, DFM feedback comes back with the quote — before you spend a day of print time.
Printing capability
Capability sheet. Four printing processes, one capability sheet.
| Feature | Capability |
|---|---|
| Process & tolerance | |
| Industrial SLA | ±0.2 mm4–6 resin grades |
| SLS nylon | ±0.3 mmPA12 · PA11 · TPU |
| Engineering FDM | Desktop fleet, plus INTAMSYS 410 high-temp line for PEEK · PEI · PA-CF |
| Metal SLM | ±0.3 mm304 stainless steel |
| Equipment | |
| SLA | Industrial large-vat stations plus Form 4 desktops and HeyGears units |
| SLS | Industrial powder station (HT252P class) plus desktop SLS |
| FDM | 40-printer desktop cluster, Raise3D Pro3 HS, INTAMSYS 410 |
| SLM | FF-M140H stations — 304 stainless |
| Service | |
| Lead time | Confirmed in quotation |
| Finishing | Via certified partners |
| Inspection | KEYENCE IM · SHINING 3D FreeScan Combo+Report in every shipment |
| Files | STL for printing — STEP or PDF drawings for context |
- 316L / Ti / 17-4PH metal printing: in planning, inquiry only.
- MJF is not offered.
- Surface finishing via certified partners.
Order flow
From STL to verified part. Orientation, supports and inspection are decided by engineers, not by defaults.
Upload your files
Send STL files — STEP or PDF drawings help — with quantity, material and the callouts that matter.
DFM + quote in 24 h
An engineer checks print orientation, supports and wall sections, then quotes with DFM feedback and a confirmed lead time.
Printing
Parts print on the matched process — SLA, SLS, FDM or SLM — with orientation set for the tolerances that matter.
Post-process + inspection
Supports and powder are removed, parts are cured or stress-relieved, and critical dimensions are measured or scanned for the report.
Delivery
Parts ship with their inspection report in the box.
Processes
The right process for each part.
Industrial SLA

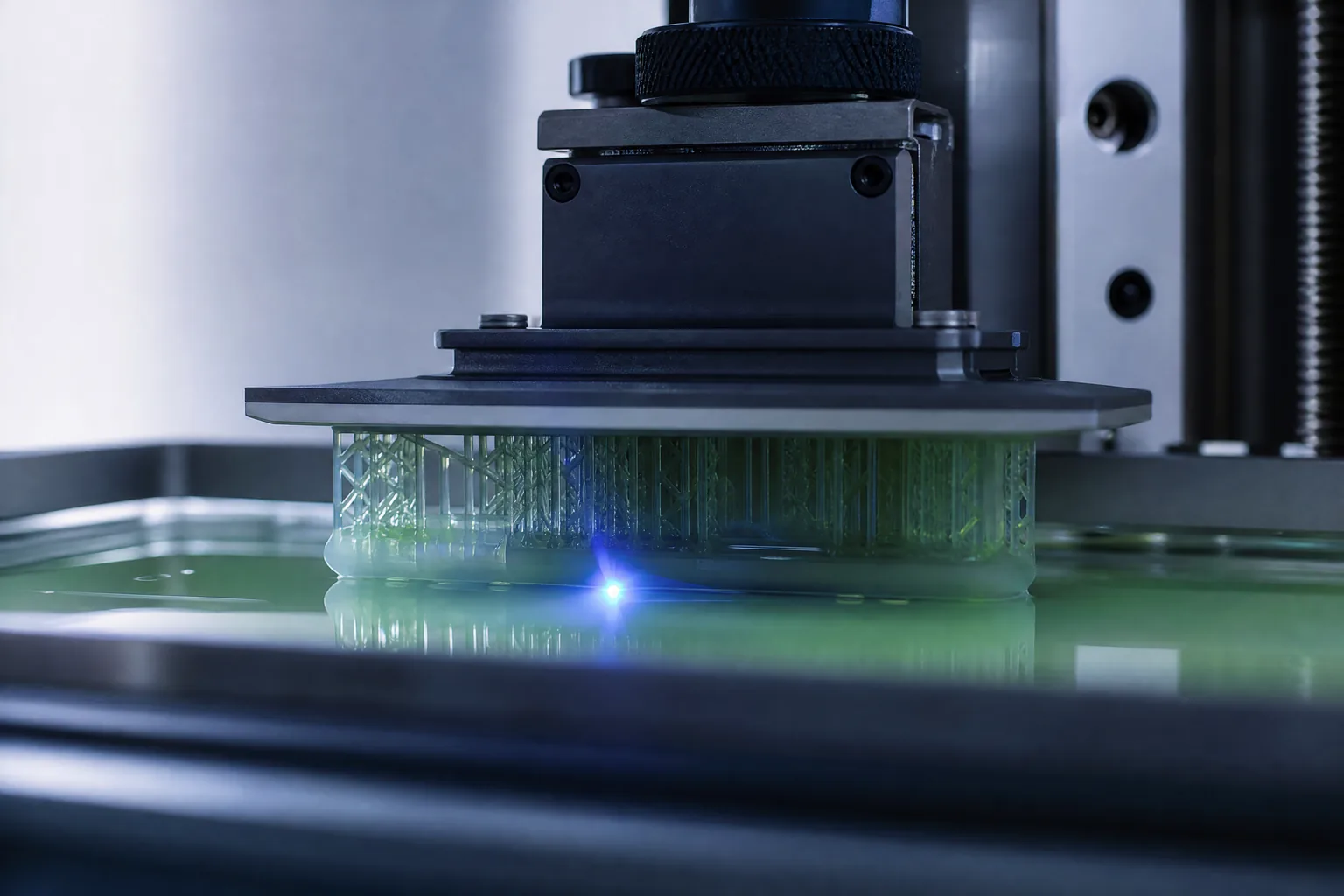

Large-vat industrial stations plus Form 4 and HeyGears desktops. 4–6 resin grades for appearance models, master patterns and fit checks at ±0.2 mm.
SLS Nylon
Industrial powder station (HT252P class) for PA12, PA11 and TPU — no supports, nestable batches, ±0.3 mm.
Engineering FDM
A 40-printer desktop cluster plus Raise3D Pro3 HS for iteration, and an INTAMSYS 410 high-temperature line for PEEK, PEI and PA-CF.
Metal SLM
FF-M140H stations printing 304 stainless steel at ±0.3 mm. 316L, titanium and 17-4PH in planning — inquiry only.
Printing, by the numbers.
- Industrial SLA tolerance
- ±0.2 mm
- SLS and metal SLM tolerance
- ±0.3 mm
- Desktop FDM printers on the line
- 40
- Orders shipped with an inspection report
- 100%
Inspection
Printed parts, verified.
The report is what separates a printed part from a guess. Post-cure shrinkage, hole positions and critical callouts are measured on KEYENCE IM or captured as a full-field scan on the SHINING 3D FreeScan Combo+, and the results ship with your parts.
- SLA ±0.2 mm · SLS ±0.3 mm · SLM ±0.3 mm
- KEYENCE IM vision metrology
- SHINING 3D FreeScan Combo+ scanning
- Inspection report in every shipment
Materials library
Printing materials on the floor. Resins, nylons and high-temperature polymers we run every week.
SLA Resin
SLA · appearance prototypes
Nylon PA12
SLS · functional nylon
PEEK
Engineering FDM · high-temp
Also in production:PA11TPUPEIPA-CF304 stainless (SLM)
3D printing questions.
Send the part and how it will be used — the answer comes back with your quote.
Which process should I choose?
SLA for appearance models and masters, SLS PA12/PA11/TPU for functional nylon, FDM for large or high-temperature thermoplastic parts including PEEK, and metal SLM in 304 stainless. If a cheaper process would do, we say so in the quote.
What tolerances can printing hold?
Industrial SLA ±0.2 mm; SLS and metal SLM ±0.3 mm. Features outside a process's envelope come back as DFM feedback before you commit to a print.
Do you offer MJF?
No. SLS covers most of the same nylon territory — PA12 and PA11, with TPU for flexible parts — and we will steer you there honestly.
Can you print metal?
Yes — SLM in 304 stainless steel today, at ±0.3 mm. 316L, titanium and 17-4PH are in planning; ask for current status and we will quote what we can hold.
How fast are printed parts?
Lead time is confirmed in your quotation against the current print schedule, with material and finishing included.
What files do you need?
STL for printing; STEP or PDF drawings when tolerances matter. Include quantity, material and the callouts you care about.
Upload your STL files for a printing quote.
An engineer checks printability and replies within 24 hours with a quotation, DFM feedback and a confirmed lead time.
