ARTERKI MANUFACTURING
Rapid manufacturing around your deadline.
Upload your CAD file and get CNC machining, SLA · SLS · SLM, rapid tooling & MIM — with an inspection report in every box.
- 5PROCESS LINES
- 20+MATERIALS
- ±0.05MM
- QUOTE IN 24 H
One-stop prototype & low-volume build · Quote in 24 h
First-article inspection report included at no extra cost on every order.
Engineering-grade, by the numbers. One engineering team behind every part.
- Standard CNC machining tolerance
- ±0.05 mm
- Engineering-reviewed quote turnaround
- 24 h
- To cut aluminum rapid tooling
- ~3 days
- Named metals & plastics in production
- 20+
- Orders shipped with an inspection report
- 100%
Tolerance capability
Tolerances we sign for. Standard capability by process — the tolerance on your drawing is the tolerance on your report.
| Process | Tolerance | Tighter | Lead time | Report |
|---|---|---|---|---|
| CNC milling · 3 & 5-axis | ±0.05 mm | ±0.02 mm on request* | Confirmed in quotation | Inspection report |
| CNC turn-milling | ±0.05 mm | ±0.02 mm on request* | Confirmed in quotation | Inspection report |
| Industrial SLA | ±0.2 mm | — | Confirmed in quotation | Inspection report |
| SLS nylon · PA12 / PA11 | ±0.3 mm | — | Confirmed in quotation | Inspection report |
| Metal SLM · 304 stainless | ±0.3 mm | 316L / Ti in planning** | Confirmed in quotation | Inspection report |
| Rapid tooling & molding | Part-specific | — | Aluminum mold cut in ~3 days | Inspection report |
| MIM · Catamold 17-4PH | Process validation | — | Runs of tens to hundreds | Inspection report |
- * ±0.02 mm on request, metrology confirmed before quoting.
- ** 316L / Ti / 17-4PH metal printing: in planning, inquiry only.
- Surface finishing (anodizing, plating, painting) via certified partners.
Capabilities
Four processes, one engineering team. From a first prototype to a validation batch, the same engineers own your parts.
CNC Machining
3-axis and 5-axis milling plus precision turn-milling, held to ±0.05 mm standard tolerances — ±0.02 mm possible, confirmed by our metrology team before we quote. Aluminum 6061/7075, stainless steel, brass, copper, carbon steel and engineering plastics.
3D Printing
Industrial SLA with 4–6 resin grades, SLS nylon PA12/PA11/TPU, engineering FDM up to PEEK, and metal SLM in 304 stainless steel. MJF is not offered.
Rapid Tooling & Injection Molding
Aluminum rapid tooling with 7075 mold cores, cut in about 3 days, running on all-electric presses. Insert molding included, for validation batches of 50–2,000 parts.
Metal Injection Molding (MIM)
MIM process validation for runs of tens to hundreds of metal parts, using Catamold 17-4PH feedstock with vacuum sintering.
Prototype to production
One partner from prototype to validation batch.
Arterki is built around one engineering team that stays with your parts from quote to shipment, so the team that quotes your parts also plans the whole route: DFM feedback with every quotation, CNC and 3D printing prototypes, rapid aluminum tooling, then validation batches — with small-batch assembly in a controlled HEPA + ESD environment.
- DFM feedback with every quotation
- CNC and 3D printing prototypes
- Rapid aluminum tooling, ~3-day molds
- Validation batches of 50–2,000 parts
- Controlled assembly (HEPA + ESD)
Inspection & testing
Every part ships with an inspection report.
Dimensional results are captured on KEYENCE IM vision metrology and a metrology-grade SHINING 3D FreeScan Combo+ scanner, so the numbers on your report come from named instruments. Surface roughness, metallographic inspection and tensile testing from 10 to 50 kN run in-house. Reliability and environmental testing is quoted per project.
- KEYENCE IM vision metrology
- SHINING 3D FreeScan Combo+ metrology-grade scanning
- Surface roughness & metallographic inspection
- Tensile testing from 10 to 50 kN
First article inspection report · SAMPLE
Questions engineers ask before ordering.
Something else? Send it with your STEP files and we will answer with your quote.
How fast can I get a quotation?
Within 24 hours. An engineer reviews your STEP or STL files and replies with a quotation, DFM feedback, and a lead time confirmed against your quantities.
What tolerances can you hold?
±0.05 mm is our standard CNC machining tolerance. ±0.02 mm is possible depending on geometry and material — our metrology team confirms it before we quote, so tighter tolerances never arrive as a surprise.
Which materials can you machine or print?
CNC: aluminum 6061/7075, stainless steel 304, brass, copper, 45# carbon steel, ABS, POM, PC, PMMA and PA6.
Printing: SLA resins, SLS PA12/PA11/TPU, engineering FDM up to PEEK, and metal SLM in 304 stainless steel. 316L, titanium and 17-4PH for metal printing are on our roadmap — ask for the current status.
Do you offer injection molding?
Yes — rapid aluminum tooling with 7075 mold cores, running on all-electric presses, including insert molding, for validation batches of 50 to 2,000 parts. For metal parts we also run MIM in Catamold 17-4PH for runs of tens to hundreds. This is rapid tooling for engineering validation and low-volume production.
What inspection comes with my parts?
Every order ships with an inspection report: dimensional results from KEYENCE IM vision metrology and a SHINING 3D FreeScan Combo+ metrology-grade scanner. Tensile testing from 10 to 50 kN, metallographic inspection and surface roughness measurement run in-house. Reliability and environmental testing is quoted per project.
Can you handle finishing and assembly?
In-house: sandblasting and shot blasting, plasma and laser cleaning, and vacuum heat treatment (solution treating and aging). Anodizing, plating and painting run through certified partners. Small-batch assembly happens in a controlled HEPA + ESD environment.
What files should I send for a quote?
STEP or STL files for machined and printed parts, and PDF drawings for tolerances and finishing callouts. Include quantity, material, and any finishing or assembly requirements — the more complete the package, the firmer the quotation.
Who is behind Arterki?
Arterki Manufacturing is the export desk of a hardware NPI platform in Beijing — read the full story on our About page. Our engineers quote your parts, plan the process route, and stand behind the inspection report in every box.
Materials library
Production-grade metals and plastics. Named alloys and polymers across every process — the ones production hardware actually uses.

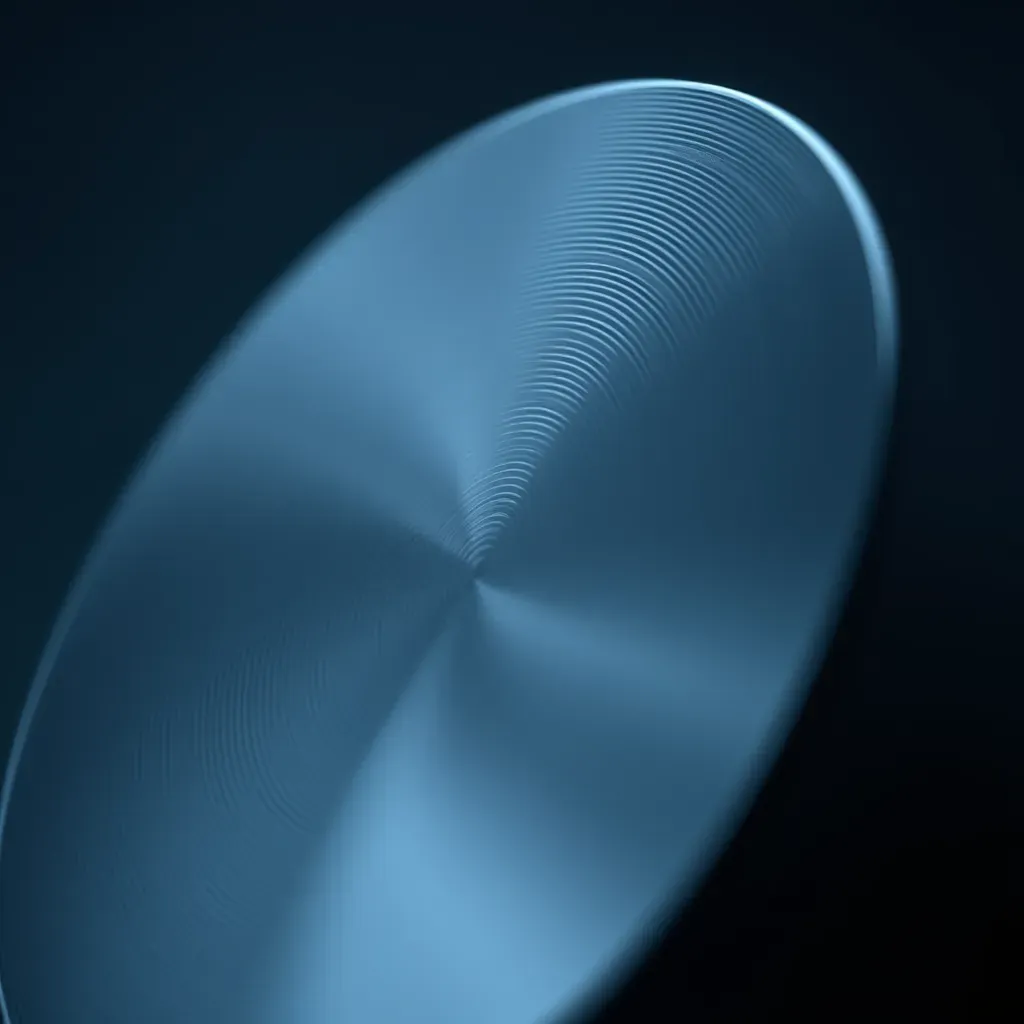

Aluminum 6061
CNC · housings & plates

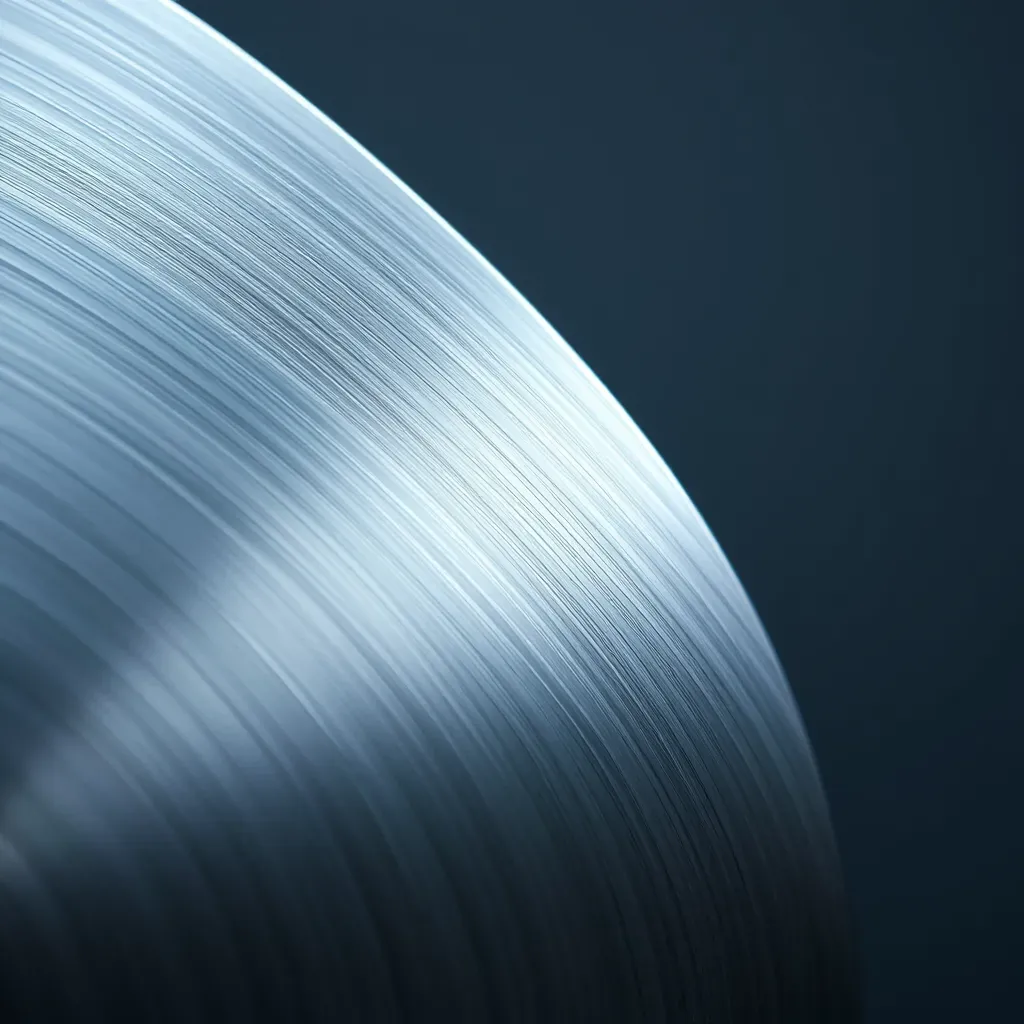

Stainless 304
CNC · metal SLM

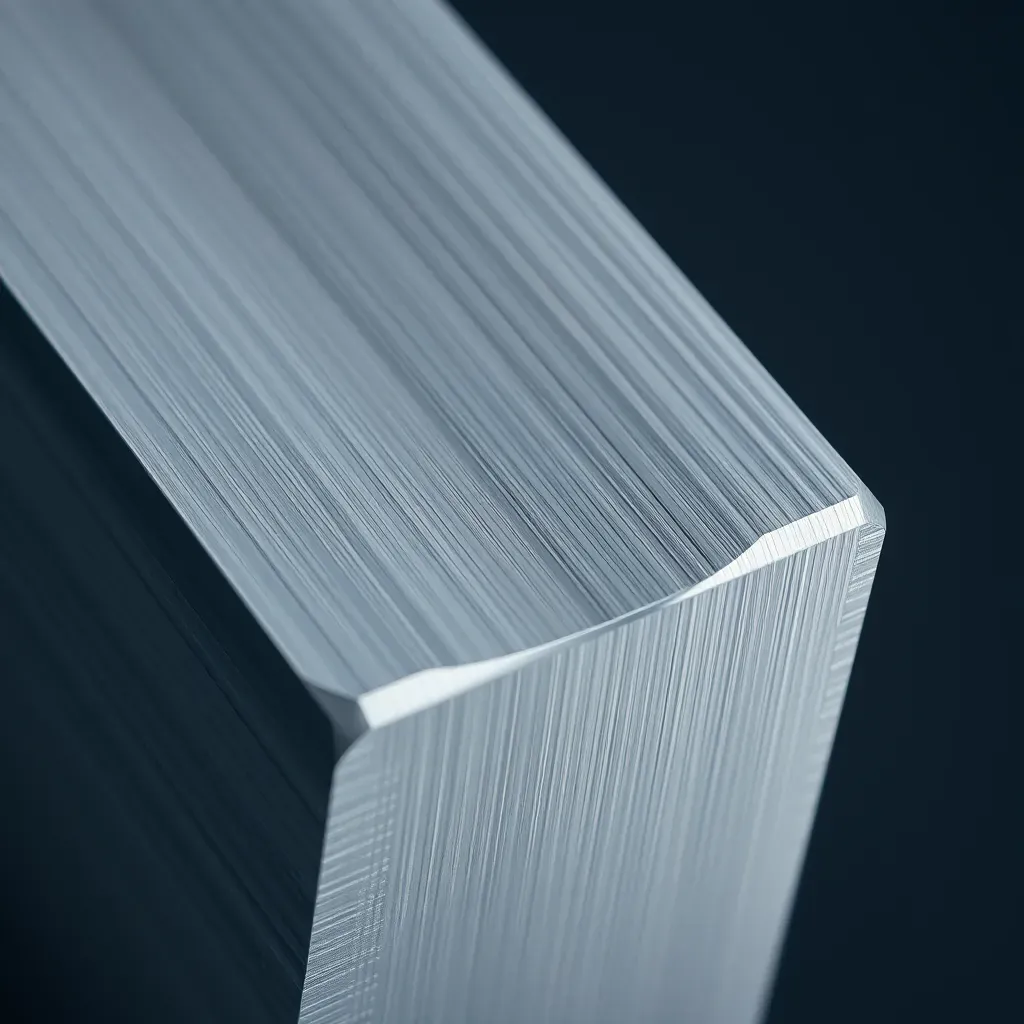

Aluminum 7075
CNC · rapid tool mold cores

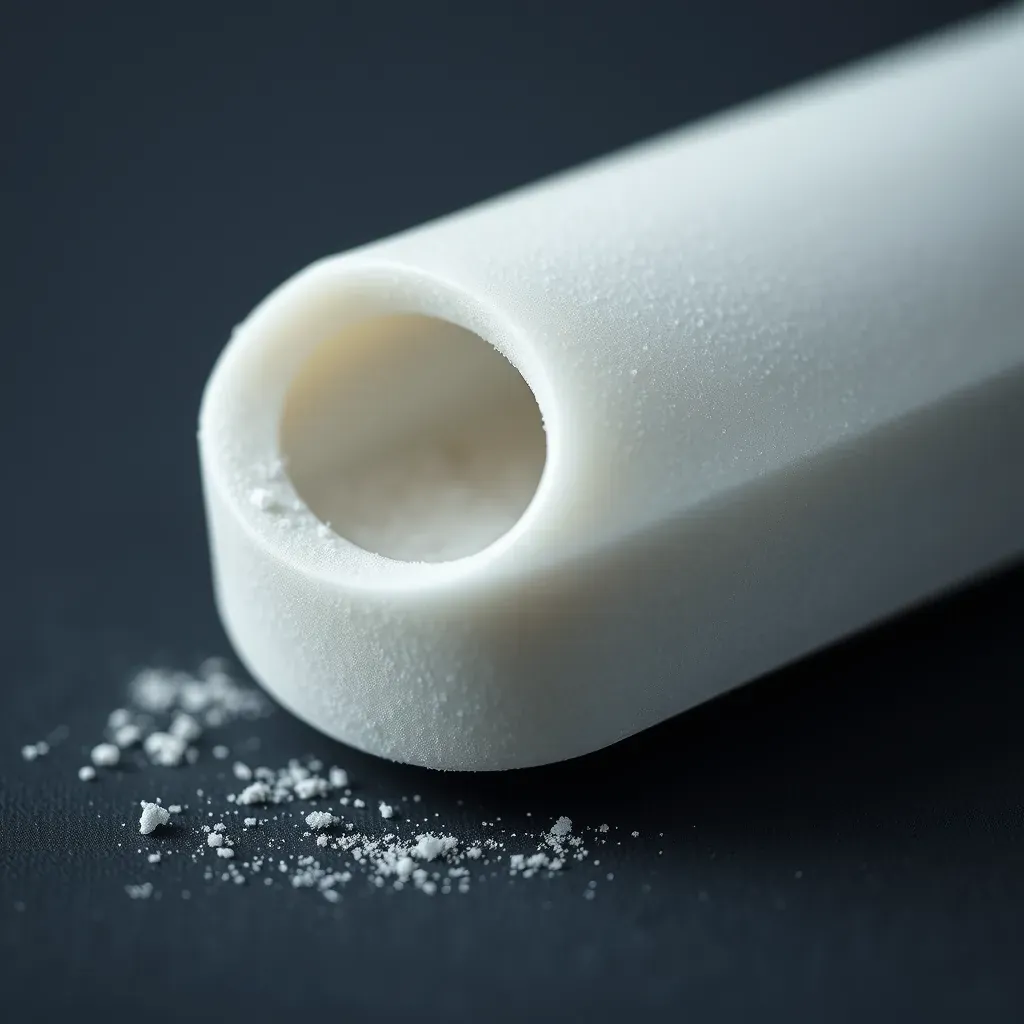

Nylon PA12
SLS · functional nylon

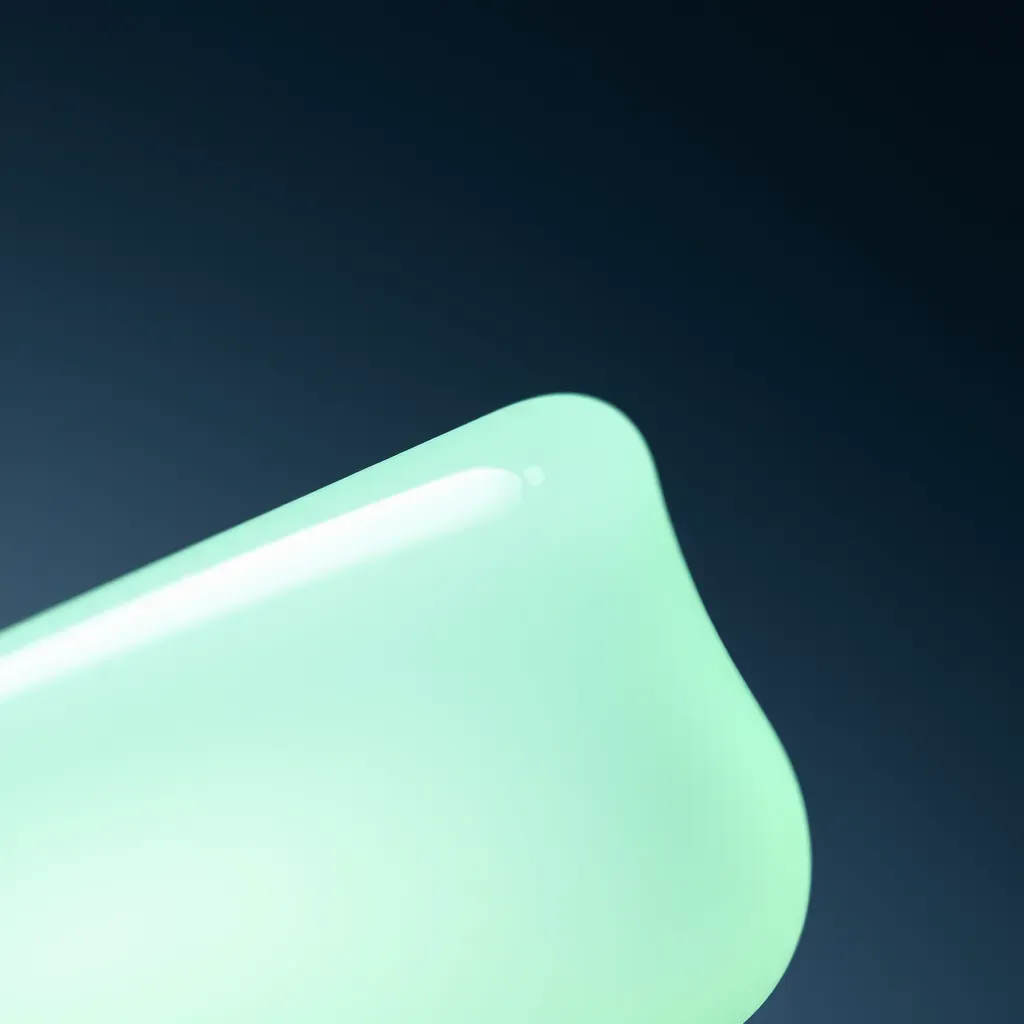

SLA Resin
SLA · appearance prototypes

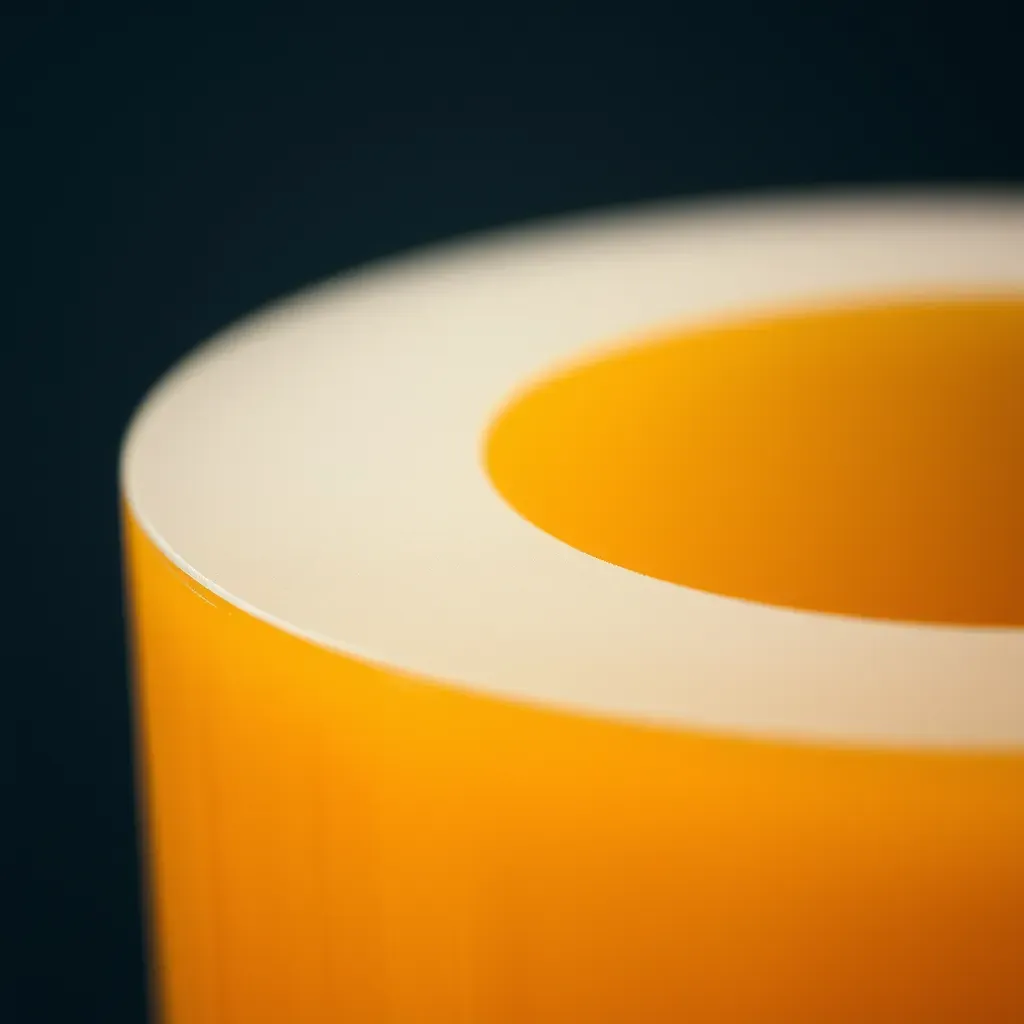

PEEK
Engineering FDM · high-temp
Also in production:Brass H59Copper45# steelABSPOMPCPMMAPA6Catamold 17-4PH (MIM)
Upload your 3D files. Get a quote in 24 hours.
Send STEP, STL or PDF drawings to our engineering team. You get back a quotation with DFM feedback and a confirmed lead time — followed by parts with an inspection report in the box.
One-stop prototype & low-volume build · Inspection report with every part · Quote in 24 h
